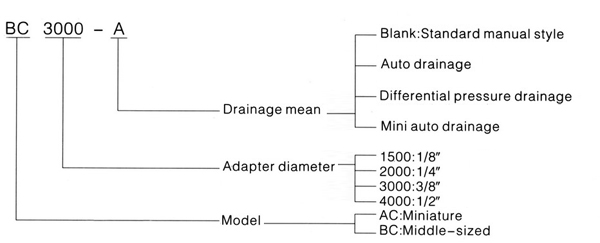

AC1500

AC2000

BC2000

BC3000(4000)

Fiuid applied

                            Air

Adapter diametet

PT 1/8

PT 1/4

PT 1/4

PT 3/8(1/2)

Filter accuracy

                             40µ

Adjusted pressure range

                         0.5～8.5kgf/cm²

Max.adjustable pressure

                           9.5 kgf/cm²

Guarantee pressure range

                           15.0 kgf/cm²

Applied temp range

                             5～60℃

Water-filtered volume

             15cc

             60cc

Feedoil cup volume

             25cc

             90cc

Suggested lubricant

                    Suggested grease:ISOVG32or same level greaes

weight

          0.7KG

             0.9KG

Material

Body

                       Aluminium alloy pressure casted

cup

                             PE

Protection
cover

             —

             Iron


Construtive  element

Filter

AF1500

   AF2000

   BF2000

BF3000(4000)

Pressure regulator

AR1500

  AR2000

  BR2000

BR3000(4000)

Oil feeder

AL1500

AL2000

BL2000

BL3000(4000)
